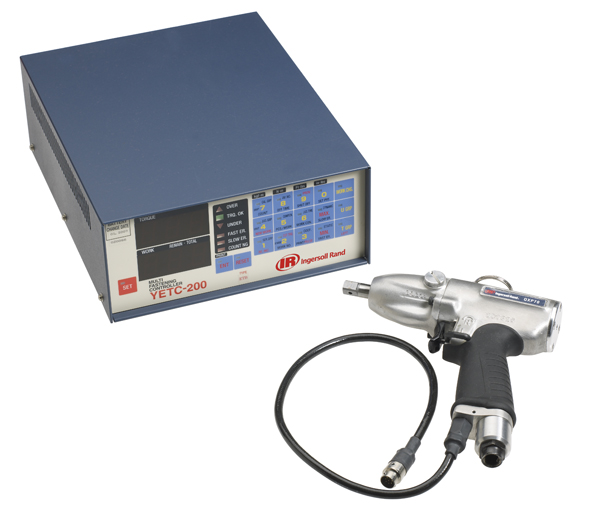

YETC 200 Series Controllers for Transducerized Pulse Tools
A microprocessor-based system that provides accurate torque control when combined with torque control pulse tools. The system monitors the signals from the tool transducer and then makes decisions based on the parameters that you have programmed into the unit. The system provides a full set of visual, audible, digital and I/O outputs. Eight separate tightening strategies can be pre-programmed and select via line control or switches. The unit features strategies that help identify cross threading, double tightening and high or low torque. The controller also provides “Gang Count” and other advanced tightening strategies.
Tools
Twin blade pulse mechanism for compact size, low weight
Minimal noise, vibration and reaction for operator comfort
Patented cooling system reduces maintenance, extends life
Adjustable pulse mechanism provides greater versatility
Integral audible signal helps operator focus attention on the fastening operations
Outboard solenoid valve reduces tool weight, enhances operator convenience
Transducer/Controller
Strain gauge is located on tool anvil close to the socket for a more accurate measurement of torque
Non-contacting pick-up reduces signal noise, improving torque repeatability
Programming and calibration is fast and easy
